TUGAS PENDAHULUAN 1

 PERCOBAAN 2

 M1

[KEMBALI KE MENU SEBELUMNYA]

DAFTAR ISI

1. Kondisi

2. Gambar Rangkaian

3. Vidio simulasi

4. Prinsip kerja

5. Link Download

1. Kondisi [kembali]

    Tampilkan angka dari 9 sampai 1 secara berulang

2. Gambar Rangkaian [kembali]

3. Vidio simulasi [kembali]

4. Prinsip kerja [kembali]

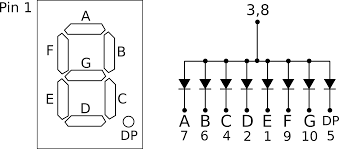

        Prinsip kerja pada rangkaian diatas dimana memakai indikator berupa seven segment yang mana dihubungkan kepada arduino uno pada tiap-tiap pinnya. yang mana pada arduino dihubungkan pada 8 pin (pin 2,3,4,5,6,7,8,9) ke kaki pin seven segment. yang mana tiap pin diseven segment mewakili dari LED pada seven segment itu sendiri. pada arduino uno telah diprogram agar dapat memunculkan angka pada seven segment itu sendiri. berdasarkan kondisi pada percobaan 2 ini dimana program diatur dari angka 9 sampai 1 secara berulang yang mana menggunakan void loop(); pada program yang nantinya akan pada void loop tersebut akan memanggil fungsi dari Void nine(); hingga Void one(); yang mana telah diatur pada fungsi void loop();



• Listing Program

 byte pin[] = {2, 3, 4, 5, 6, 7, 8, 9};

void setup() {

pinMode (2,OUTPUT);

pinMode (3,OUTPUT);

pinMode (4,OUTPUT);

pinMode (5,OUTPUT);

pinMode (6,OUTPUT);

pinMode (7,OUTPUT);

pinMode (8,OUTPUT);

pinMode (9,OUTPUT);

}

void loop() {

  nine();

  eight();

  seven();

  six();

  five();

  four();

  three();

  two();

  one();

}

void one(){

digitalWrite(2, HIGH);

digitalWrite(3, LOW);

digitalWrite(4, LOW);

digitalWrite(5, LOW);

digitalWrite(6, LOW);

digitalWrite(7, HIGH);

digitalWrite(8, HIGH);

digitalWrite(9, LOW);

delay(500);

}

void two(){

digitalWrite(2, HIGH);

digitalWrite(3, HIGH);

digitalWrite(4, LOW);

digitalWrite(5, HIGH);

digitalWrite(6, HIGH);

digitalWrite(7, LOW);

digitalWrite(8, HIGH);

digitalWrite(9, HIGH);

delay(500);

}

void three (){

digitalWrite(2, HIGH);

digitalWrite(3, HIGH);

digitalWrite(4, LOW);

digitalWrite(5, LOW);

digitalWrite(6, HIGH);

digitalWrite(7, HIGH);

digitalWrite(8, HIGH);

digitalWrite(9, HIGH);

delay(500);

}

void four(){

digitalWrite(2, HIGH);

digitalWrite(3, HIGH);

digitalWrite(4, HIGH);

digitalWrite(5, LOW);

digitalWrite(6, LOW);

digitalWrite(7, HIGH);

digitalWrite(8, HIGH);

digitalWrite(9, LOW);

delay(500);

}

void five(){

digitalWrite(2, HIGH);

digitalWrite(3, HIGH);

digitalWrite(4, HIGH);

digitalWrite(5, LOW);

digitalWrite(6, HIGH);

digitalWrite(7, HIGH);

digitalWrite(8, LOW);

digitalWrite(9, HIGH);

delay(500);

}

void six(){

digitalWrite(2, HIGH);

digitalWrite(3, HIGH);

digitalWrite(4, HIGH);

digitalWrite(5, HIGH);

digitalWrite(6, HIGH);

digitalWrite(7, HIGH);

digitalWrite(8, LOW);

digitalWrite(9, HIGH);

delay(500);

}

void seven(){

digitalWrite(2, HIGH);

digitalWrite(3, LOW);

digitalWrite(4, HIGH);

digitalWrite(5, HIGH);

digitalWrite(6, HIGH);

digitalWrite(7, LOW);

digitalWrite(8, LOW);

digitalWrite(9, HIGH);

delay(500);

}

void eight(){

digitalWrite(2, HIGH);

digitalWrite(3, HIGH);

digitalWrite(4, HIGH);

digitalWrite(5, HIGH);

digitalWrite(6, HIGH);

digitalWrite(7, HIGH);

digitalWrite(8, LOW);

digitalWrite(9, LOW);

delay(500);

}

void nine(){

digitalWrite(2, HIGH);

digitalWrite(3, HIGH);

digitalWrite(4, HIGH);

digitalWrite(5, HIGH);

digitalWrite(6, LOW);

digitalWrite(7, HIGH);

digitalWrite(8, HIGH);

digitalWrite(9, HIGH);

delay(500);

}

 5. Link Download [kembali]



    Html disini

    Vidio Percobaan disini

    File Rangkaian Percobaan disini

    File Program Percobaan disini

     Datasheet Arduino Uno disini

    Datasheet LED disini

    Datasheet LCD disini

    Datasheet Keypad disini

    Datasheet Resistor disini

    Datasheet Seven Segment disini
